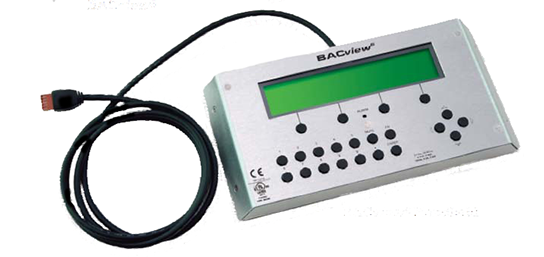

The Bacview is an optional back lit LCD display service tool that can be plugged into the controller of every Hydro-Temp system that has an Automated Logic controller.  It is designed to be carried around by the service personnel.  All system points, system safeties, system status and calculated values are visible on the bacview.

When the bacview is first plugged in you may press any key to display the Program number that was downloaded into the controller.

The Rnet Local access plug is labeled and located roughly in the center left side of all controllers.  The bacview plug is designed so it can't be plugged in backwards or in any other place.

Special Networking Functions:

FN + period can be pressed to display a module status.

FN + 8 to display Device instance numbers for integration purposes.

FN + 9 to display Network numbers for integration purposes.  The plus sign will show up next to the network the controller is communicating with.  The plus will always follow the last network number that was edited.
